Laser Fixtures

Durable laser cutting and welding fixtures engineered around part geometry, locating strategy, offal clearance, cleanup, and automation integration.

Discuss a laser fixtureView fixture capability

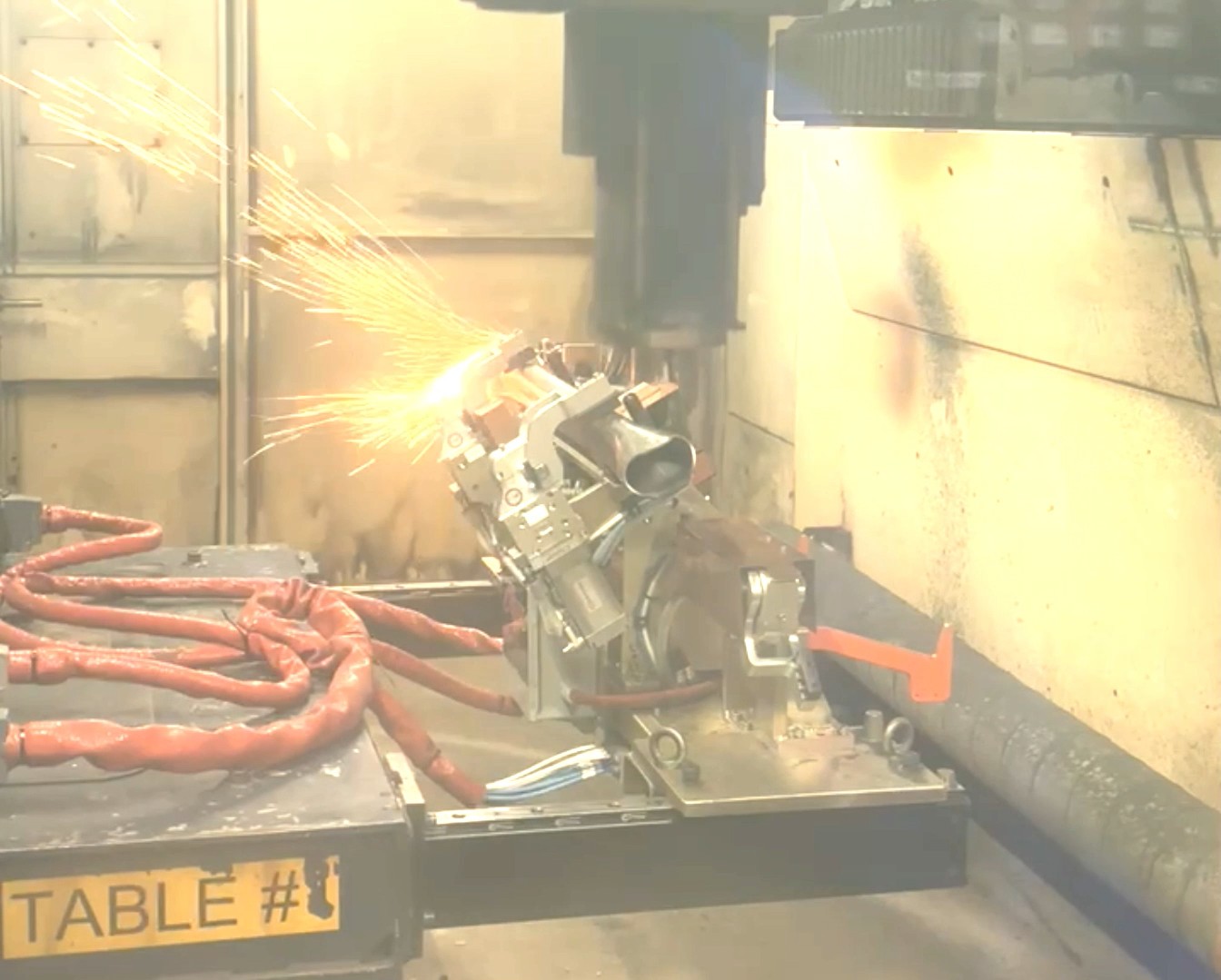

Laser cutting fixture operating inside an enclosed laser cell.
Cutting or weldingFixture concepts for laser process needs
360 degree rotationPart and fixture rotation options available
Integration readyMajor laser cells and robotic load/unload

Fixture details that protect cycle time and part quality.

Laser fixtures have to do more than hold a part. They need to locate repeatably, survive the process environment, keep clearance where offal drops, protect sensors and wiring, and stay serviceable over time.

  • Available for laser cutting and welding applications.
  • Supports flat sheet, tube, and other part geometries.
  • Part holding options include clamping, magnetic, vacuum, and custom contour blocks.
  • Coating and connector block options for durability and easier cleanup.
  • Centering points on each fixture.
  • Clearance considerations for part offal.
  • Sensor, plumbing, and wiring protections as needed.
  • Integration with most major laser cell manufacturers and robotic load/unload.
Orange multi-station laser fixture with clamps and protected utilities.

Cell-ready fixture systems

Complete fixtures can incorporate rotation, clamping, sensing, protected utilities, and access for laser processing.

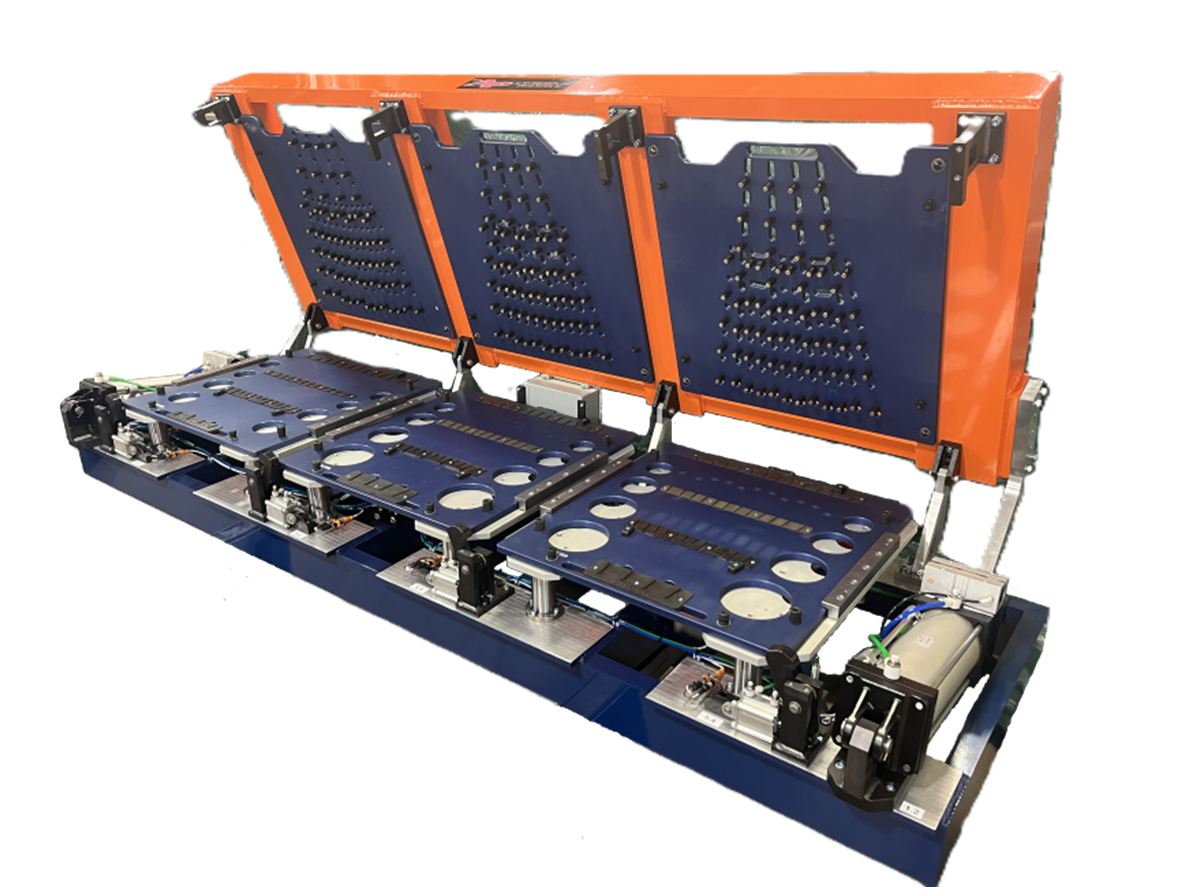

Laser fixture 21704 with three hinged tooling stations and pneumatic clamps.

Multi-station laser fixtures

Purpose-built nesting, clamping, and hinged access support repeatable processing across multiple part stations.

Building around a laser process?

Share the part geometry, process type, access constraints, desired load method, and laser cell manufacturer. Alto can draft a fixture concept that fits the process instead of fighting it.

Contact Alto Precision
